We proudly manufacture custom stainless steel products for essential industries.

Astra Tank.png


Pharmaceutical Storage, Mixing, and Fluid-Handling Systems and Equipment require the utmost in metal surface integrity, corrosion resistance and chemical inertness.  SPS utilizes 316/316L SS materials and others (Hastelloy™, AXL6N™, and Titanium) as well as weld construction techniques that facilitate both manual and clean-in-place (CIP) systems and product drain-ability. By polishing surfaces, both mechanically and via electropolishing or passivation, the integrity of your product's hygienic surface is safeguarded.

PHARMACEUTICAL

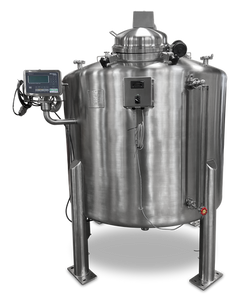

Pharmaceutical Tank 1 - 1600L
Pharmaceutical Tank 2
Pharmaceutical Tank 3 - 50L
Pharmaceutical Tank 4 - Small
Pharmaceutical Tank 5
Pharmaceutical Tank 6 - 600L

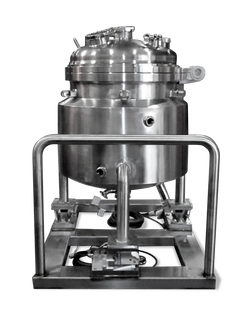

Pharmaceutical Tank 7


SPS manufactures high quality 1, 3, 5, 7, 12 & 21 Round, Multi High ASME & Non-Code Filter Housings for the Biotech Industry. Filter Housings for Gas and Liquid applications can be customized as T-Style and In-Line with various I/O (tri-clamp, pipe) configurations, vent and drain valve styles, with industry standard Filter Sockets like Code  7 & 8 (e.g. 222, 226). 304 and 316 SS materials of construction and Closure Styles (Clamp, Swing bolts) along with various finishes are available.

BIOTECHNOLOGY

STERILE FILTRATION

multiround filter housing
7 round filter housing base
5 round filter housing base
multi round filter housing - with words

SEMICONDUCTOR

Vacuum Chambers and Shell and Tube Heat Exchangers are used in the manufacture of Semiconductor and Thin-Film Deposition technologies.  Drawing from its vast experience in pharmaceutical tank construction, SPS produces exceptional vacuum chambers with structural designs to meet stringent performance requirements like ultra-high vacuum levels down to 1 x 10-9 cc He/min leak rates while simultaneously providing highly reflective surfaces for cleanliness, and minimal residual gas entrapment during pump down.  Both 304 and 316 SS materials, along with a variety of feed-thru ports, are available.


Space Systems Weld Vacuum Chamber
vacuum chamber
vacuum chamber 2
vacuum chamber 3


AEROSPACE

Aerospace tank applications require designs and materials (e.g. 304 SS) that maintain the integrity of the structure (i.e. robust to withstand a cryogenic service environment down to -320F), are inert and corrosion resistant to tank contents, and maintain their pressure properties during multiple duty cycles. SPS utilizes software like Compress™ to evaluate vessel design details (per ASME Section VIII, Div, 1 & 2), and seismic leg designs to meet our customers' requirements under a variety of operating conditions and geographic locations.

LOx Tank Large (21ft) - contrast_edited
800 GAL LOx Tank
2000 GAL Fuel Tank


Nutraceutical, Cosmetic and Food & Beverage companies often need very unique equipment designs for material handling of their product whether it’s gel-capsules, tablets, or viscous liquids.  SPS is well suited to listening to your needs and then designing and fabricating innovative portable designs to reduce handling costs from production to fill lines, or improving GMP cleaning operations both CIP & COP. Materials of construction are 304 and 316 SS.



NUTRACEUTICAL
